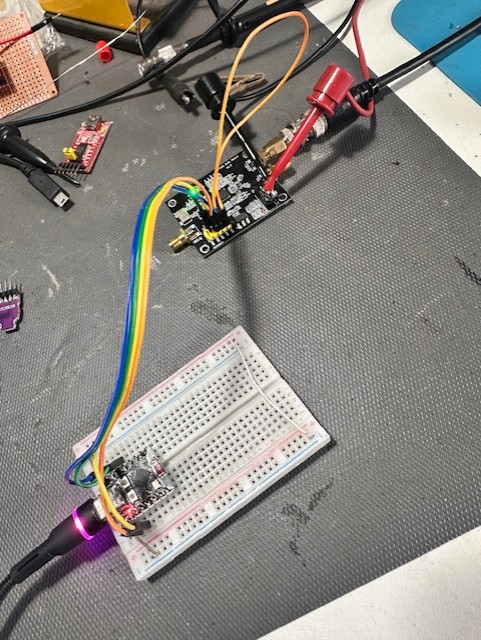

ADF4351 controlled with ESP32

code test :

#include « ADF4351.h »

#include <SPI.h>

#define clock 4

#define data 6

#define LE 7

#define CE 10

ADF4351 adf4351(clock,data,LE,CE); // declares object PLL of type ADF4351

void setup() {

Serial.begin(115200);

adf4351.begin();

// ref =25Mhz freq :41Mhz

adf4351.WriteRegister(0x00580005); // R5

adf4351.WriteRegister(0xEC81FC); // R4

adf4351.WriteRegister(0x000004B3); // R3

adf4351.WriteRegister(0x4E42); // R2

adf4351.WriteRegister(0x80080C9); // R2

adf4351.WriteRegister(0x3400C0); // R1

Serial.println(« All registers have benn written! »);

}

void loop() {

// put your main code here, to run repeatedly:

}
